with pistol port
Kit : #WVC72048
by Stephen 'Tank Whisperer' Brezinski
This review is from the viewpoint of a display modeler looking at historical accuracy as well a quality of the casting and the parts.
references for this review are: Son of Sherman Volume 1, The Sherman
Design and Development, published by Ampersand Group (2013). and Sherman
Minutia website, The M4A4 Sherman. It is the best on-line reference for
the details of the Sherman tank variants; not as much of vehicle combat
history though, @ http://the.shadock.free.fr/sherman_minutia/index.html

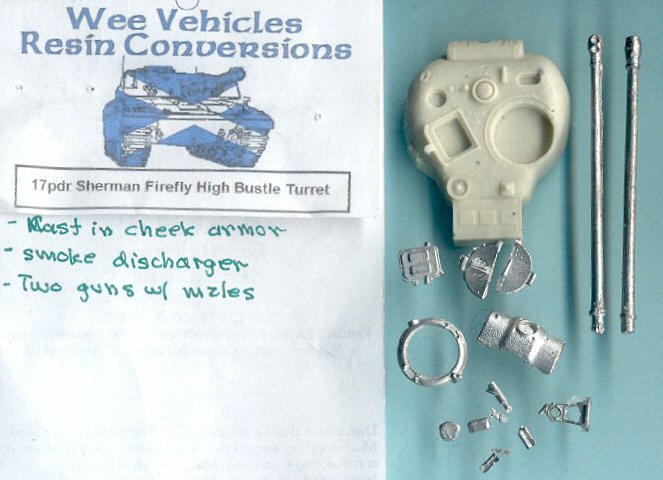

This scan shows the cast resin Firefly turret and the approximate 15 cast metal parts. The quality and detail of the resin is very good and largely defect free. A few dark spots visible are small dark inclusions within the resin, not air bubbles.
The white metal parts are cast well and need just a little trimming of flash and sanding edges. There are two 17-Pounder gun barrels in my Firefly Conversion: one with the typical round muzzle break with two baffle holes, and a second barrel with a more cylindrical muzzle break I am unfamiliar with. The muzzles should be drilled out.
the turret we see the rectangular loader's hatch, the split hatch
cupola, individual periscopes, the gun travel lock and other small
parts. It appears we must open up the hole in the rotor shield (gun
shield) for the base of the gun barrel to insert.

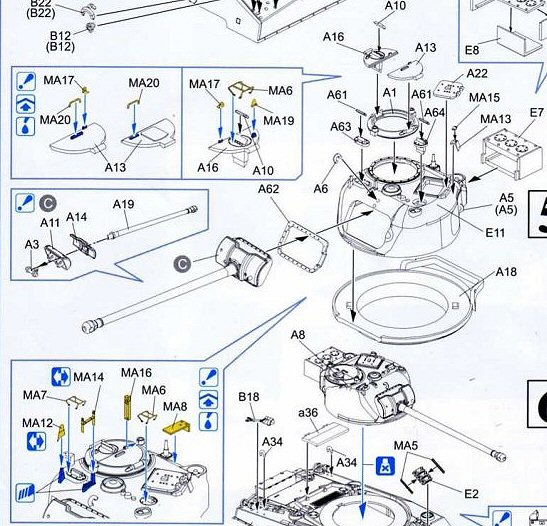

|This is a scan of Dragon Models instructions for assembly of their 1/72 scale Firefly 1C turret. This may help in putting together this Wee Vehicles turret. This Wee Vehicles firefly turret appears based on the Dragon kit, a good choice.|
close-up of the resin turret shows the two turret hatch holes for half-figures,
the ventilation dome, radio box on the turret, the pistol port on the
left side, and the holes for the separate cast metal periscope parts
that drop in. Not seen here is the cast-in cheek armor on the forward
right side. There are small dimples indicating where the lifting rings
go, easily made from copper or brass wire; I recommend drilling the
holes a mm or two deeper first.
This looks like an accurate late Firefly turret that would accurately fit on a Firefly 1C hull based on the M4 Sherman, or a Firefly 1C Hybrid hull based on the M4 Composite.

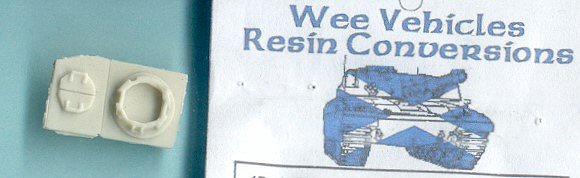

The separate Wee Vehicles cast resin British all round vision cupola below is not part of the Wee Vehicles Firefly turret, and I do not yet have a part number for it, but I include it here as it was sometimes used on the Firefly tank as well as late Cromwell tanks and on Comet tanks.
turret is first rate. I like the separate periscope parts. The soft
metal gun barrel is not as finely done as a turned aluminum and brass
17 Pounder gun barrel. Like with all plastic and resin Sherman turrets,
etched brass detail parts would be very helpful for a good display
Preview sample purchased by the author.
