Dragon's Tiger Turrets

by Rob Haelterman & Timothy Lau


The Tiger I turret

It is well-known that



Dragon's Tiger I kits

I currently own three Dragon kits that use a Tiger I turret:

  • 7210 "Bergepanzer"
  • 7251 Tiger I Ausf.E
  • 7357 Tiger I "Gruppe Fehrman"

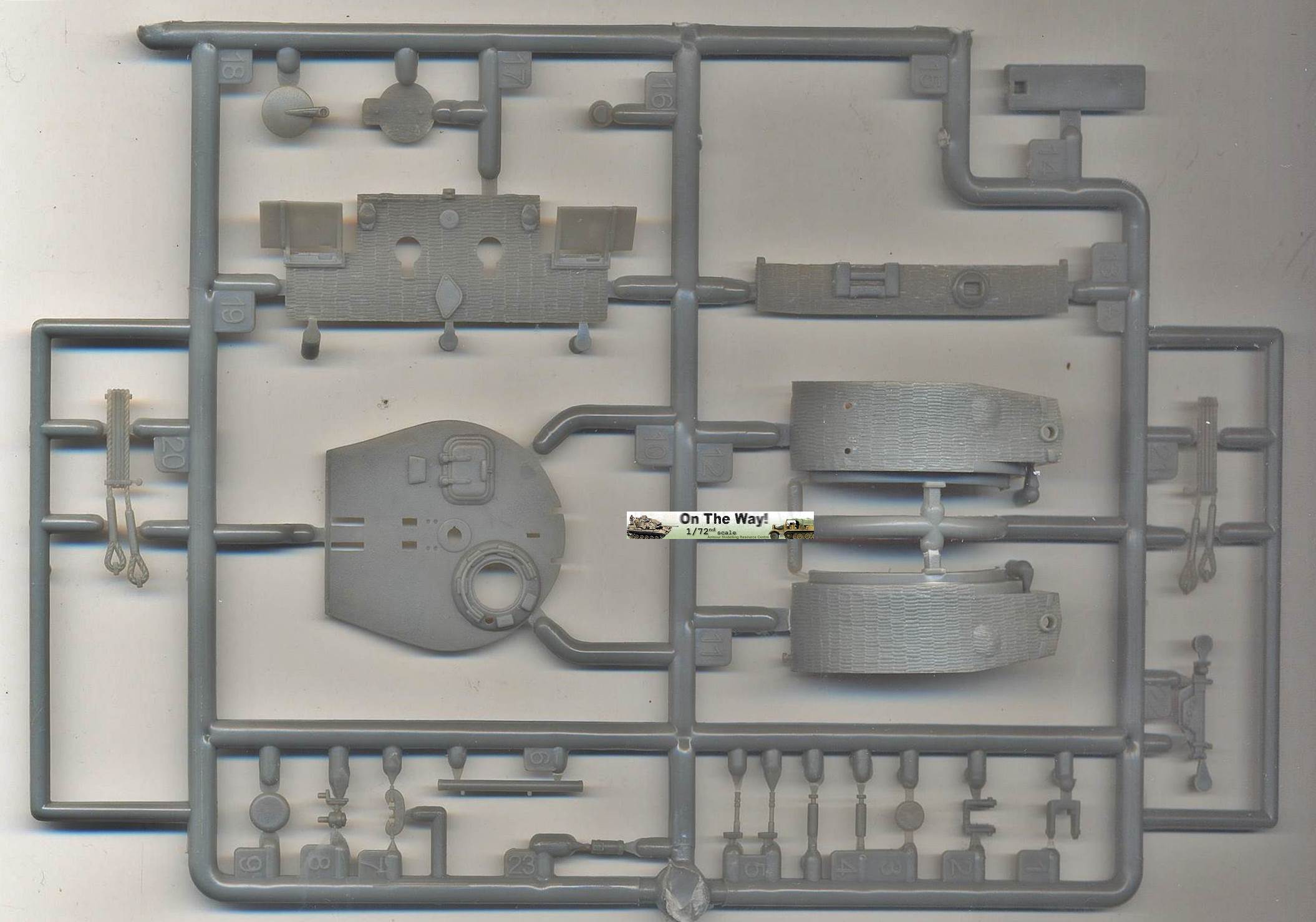

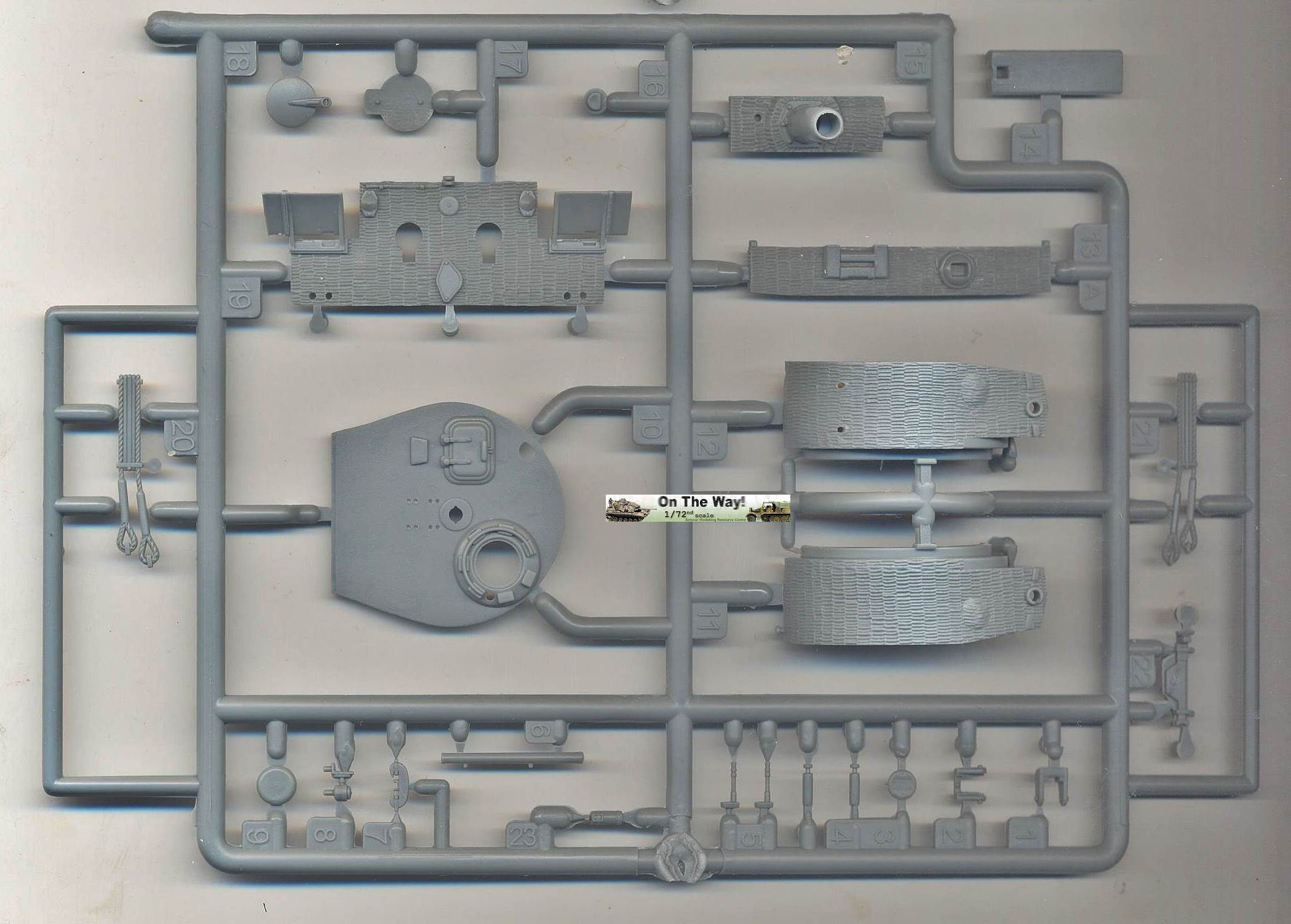

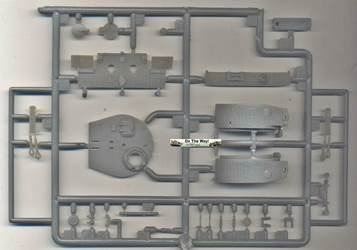

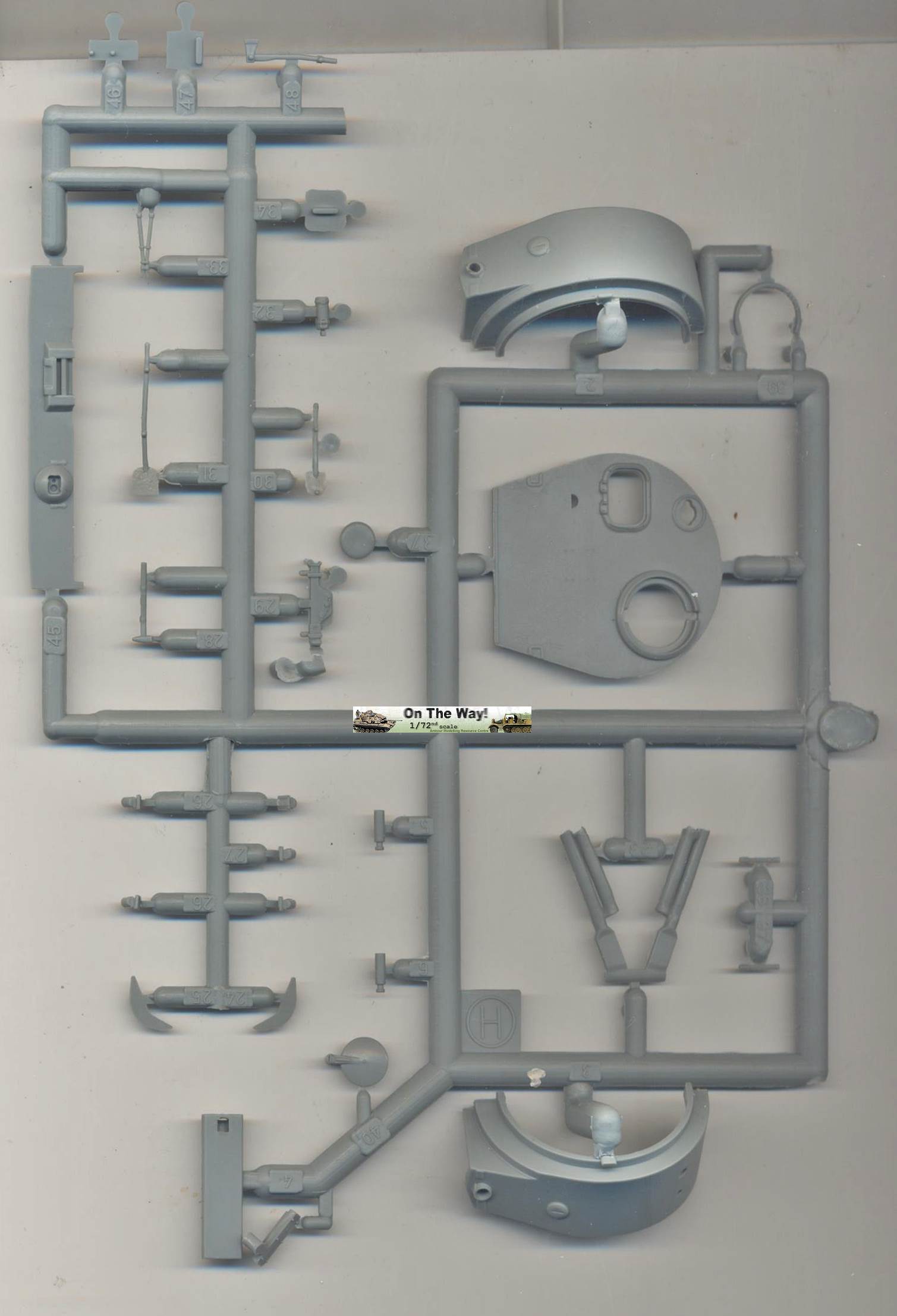

The first two have a very similar sprue for the turret, apart from the fittings for the crane on the roof of the Bergetiger turret, while the last one is clearly different (sprue lay-out, open loader's hatch, ...) and from a later date. The first sprue is generally labelled "A" in Dragon's instructions, while the latter is labelled "H", which is how we will call them here. I assume that, with respect to general geometry, these are the only two turret sprues in circulation. (For all intents and purposes in this discussion, the Bergetiger turret is the same as that in kit 7251.)

The complete list of Dragon Tiger I kits, as of December 2018, stands as follows. I've identified the turret sprue in each kit,

Kit Number Kit Name Turret sprue
7203 Tiger I Ausf. E Late Sprue A (with exhaust shrouds removed)
7210 Bergepanzer Tiger I w/Zimmerit Sprue A (slightly modified and with exhaust shrouds removed)
7251 Tiger I Ausf. E Sprue A (with exhaust shrouds removed)
7357 Tiger I Gruppe Fehrman  Sprue H
7370 Pz.Kpfw. VI Tiger I Ausf. E (Sd Kfz 181) "Initial Production"
7376 Tiger I, Initial Production s.Pz.Abt.502
7434 Sd.Kfz.181 Tiger I Mid Production with Zimmerit and Kubelwagen Sprue A (with exhaust shrouds removed)
7440 Pz.Kpfw.VI Ausf.E Tiger I Late Production w/Zimmerit + Tiger Aces
 Sprue A (with exhaust shrouds removed)
7482 Tiger I Early Production The same as Sprue H in 7357 but without the hole for the loader's periscope.
7575 Pz.Kpfv.VI Tiger I early production Wittmans command tank

More details about the sprues can be found here.



Accuracy

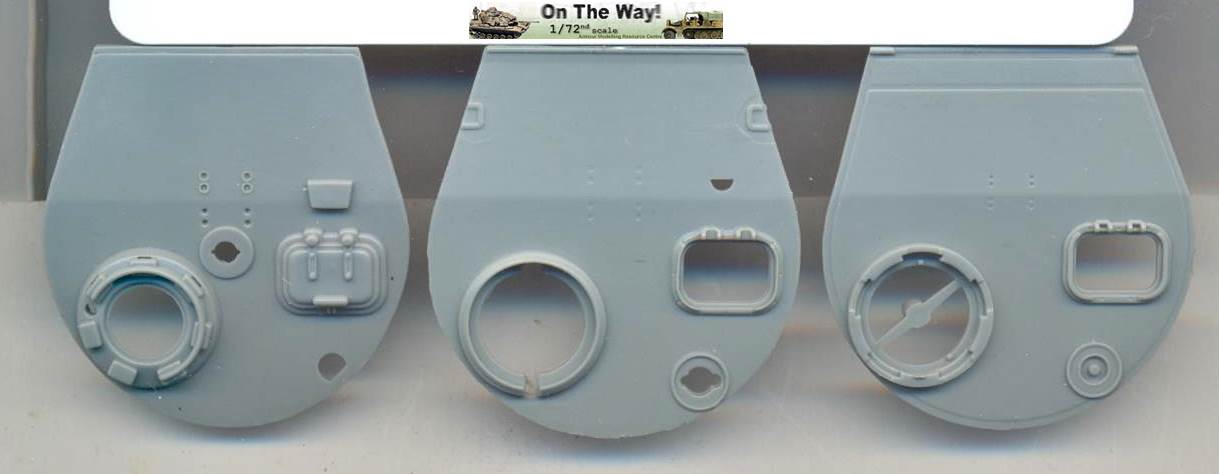

Below is a more detailed scan of the turret roofs, cut from the sprue, so they are lying flat on the scanner. (I know that I should base my assessment on assembled turrets, including the turret walls, but I am not building my Tigers just yet.) To the left, sprue "H", to the right, sprue "A".
We clearly see that Spre H has been modified. So that's a sign that Dragon realized the problem and took corrective measures, right ?

Well, not quite.... and this is actually surprising. The old sprue "A" was asymmetrical all along, while the new roof is symmetrical. So, this means that Dragon made things worse ?


From http://tiger1.info/EN/Turret-asymmetry.html, for discussion purposes only.

Well, not quite. The old sprue "A" was asymmetrical, but on the wrong side.... The new roof is thus only a little bit better than the old one.
